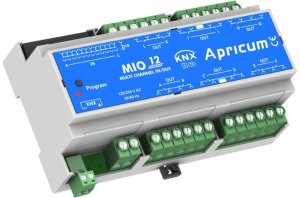

Apricum MIO12 - (KNX) Switch Actuator 12-fold with integrated binary input 12-fold, 9SU, REG

KNX switching actuator 12 fold with 12 binary inputs

The MIO-KNX 12 is a modular installation device for installing in a distribution board on 35mm mounting rails.
Connection to the KNX is implemented via a 2-screw terminal.
The actuators switch up to 12 independent electrical loads via potential free contacts (bi-stable relais).
The outputs are connected using screw terminals.
Each output is controlled separately via the KNX.
The actuators are particularly suitable for switching ohmic loads.

The 12-fold Binary Input part has 12 independent inputs for sensing potential free floating contacts such as conventional switches and push buttons.


Features / Benefits

Configurable binary outputs NC/NO, delay, staircase
Power on behavior according to parameter
Large number of logic functions for the input channels (sun protection, one-button shutter, dimming, -) and the output channels (switch, scene, staircase, delay, -)
Inputs for switching, toggle, blinds, scene, dimming
Detects short and long switching
