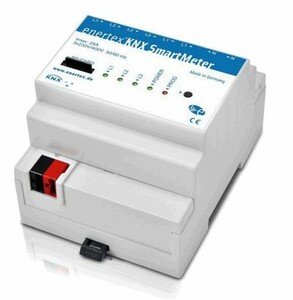

Enertex® SmartMeter KNX 85A analysis of power generation and/or power consumption

Enertex® KNX SmartMeter for a efficiency analysis of power generation and/or power consumption

The KNX Smartmeter (4U) is a bidirectional meter for measurement of active and reactive energy or power, respectively. Further it features an analysis of power supply quality.
Measurements can be performed in a 3-phase system or in three independent 1-phase systems with the accuracy class 1 (1%).

All measured values (current, voltage, active power, reactive power, active energy, reactive energy, power factor, THD-U, THD-I harmonics, unbalanced load, zero system current) are indicated at the KNX-Bus.

Measurement of current is performed losslessly via extern current sensors. Three current sensors, which are calibrated and delivered with the smartmeter, are qualified for direct installation at the power supply feed-in. Currents can be measured from 2mA to 85A per phase, voltages from 0 to 460VAC. Measurement range for active power is from 0.5W to 19550W or 58650W for 3-phase systems, respectively. All energy and measurement values are further stored as text data on a SD-card for further data analysis.

ETS application features beside special functions for load dependent load control, optimizing the self energy consumption with solar collectors, calculation of electricity costs with tariff changeover, prevention of overloads several functions for supervision. These functions trigger events like a lack of phase voltage, high harmonic distortion, high consumption of reactive energy, high unbalanced load or high zero system current at the bus, when given limits are exceeded. For investigation of power supply quality the spectrum is analyzed up to the 50th harmonic for current and voltage. Severals supervision functions provide an analysis of power supply loss, failures and damages of electrical consumers caused by the power supply with a precise point of time.

The smartmeter is supplied only by KNX-Bus.

Warranty:

• 2 years manufacturer`s warranty


Enertex® SmartMeter KNX is available in 3 versions:

Enertex® SmartMeter KNX 85A:

• Measurement from 2mA to 85A
• Current sensors for through-hole mounting
• Operation only via KNX bus possible


Enertex® SmartMeter KNX 85A RT:

• Measurement from 2mA to 85A
• Current sensors for through-hole mounting
• Operation also without KNX bus possible
• Battery buffered clock (is set to the local time of Berlin at the factory) allows to record all meassurements at each full minute on SD card


Enertex® SmartMeter KNX 630A:

• Measurement from 10mA to 630A
• Current sensors for through-hole mounting
• Operation also without KNX bus possible
• Battery buffered clock (is set to the local time of Berlin at the factory) allows to record all meassurements at each full minute on SD card
