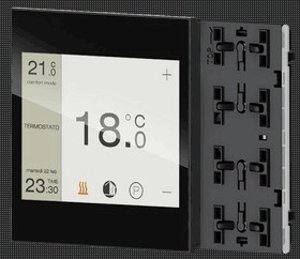

Touch&See display with 2-fold pushbutton, with red/white LED

DESCRIPTION
KNX control and visualisation unit with integrated 2-fold pushbutton. 3.5" touch screen and user interface with graphical pages. Mounting on round, square or rectangular wall box. Connections to bus and auxiliary 30Vdc power supply. To be used in KNX installations for home and building automation. Construction-site protection and mounting support included in the delivery.

The device has to be to completed with two square rockers and a rectangular frame of the series form or flank (to be ordered separately).

[IN PREPARATION]

FUNCTIONS / CHARACTERISTICS
(TOUCH-SCREEN)
- chronothermostat
- on/off switching of single loads or groups of loads
- dimming of lighting devices
- control of motor drives (for roller shutters, blinds, curtains, etc.)
- displaying of status of signal contacts (from safety devices, etc..)
- displaying date and time from the internal clock or a KNX timer
- displaying values from a KNX weather station such as temperature, wind speed, rain presence, brightness, etc.
- displaying of alarm messages
- recalling and storage of scenarios
- sending of values (temperature, brightness, etc.) on the bus
- function blocking with password
- temporarily locking function for screen cleaning

(PUSHBUTTON 2 CHANNELS)
- ON/OFF switching of single loads or groups of loads
- dimming of lighting devices
- control of motor drives (for roller shutters, blinds, curtains, etc.)
- recalling and saving of scenes
- sending on the bus of values (temperature, brightness, etc.)
- switching to forced functioning (lock)
