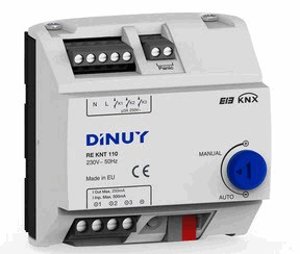

3-channel modular 1-10VDC dimming actuator. KNX

• 1-10V Dimming Actuator for Drivers or Ballasts, with fluorescent tubes or LED lighting.
• 3 output channels, with a maximum of 3A per channel.
• It has 2 control elements for switching/dimming the load:

– K relay: 3 independent contacts that open or close the phase output to the drivers or ballasts. Therefore, with this relay, we will control the power supply of the luminaires. If a greater number of electronic ballasts or drivers with high inrush currents are to be connected, a separate load contactor is recommended.
– 1-10V Analogue Output: dimming signal. The number of electronic ballasts or drivers that can be dimmed via the 1-10V output, depends on the ballast-specific 1/10V input current of the types used.

• Different functions and parameters can be enabled and parameterised by the ETS: staircase lighting timer with warning function, dimming speed, scene control (up to 5), sequential operation, soft turn on/off, etc.
• Outputs can be operated manually (even without bus connection).
• The device has integrated overload, short-circuit and over-heating protection.
• Modular installation device. DIN-rail mounting. 5-modules wide.
• Programming and commissioning by ETS4 or later versiom.

TECHNICAL CHARACTERISTICS

Product reference	RE KNT 110
Power Supply (V)	230VCA
Frequency (Hz)	50
Consumption	13mA
Output channels	3
Switching capacity (A)	3
Type of load	Ballast or Driver 1/10Vcc
LED lamps load (W)	0
Halogen lamps with ferromagnetic trafo (W	0
Motores (VA)	0
Maximum current input 1/10VDC (mA)	500
Maximum current output 1/10VDC (mA)	100 (por Canal) // 270 (en Total)
Maximum Number of Equipments	150
Binary/Analogic Inputs	0
Installation	DIN Rail
Module number	5
Control	KNX Bus
Programming by	ETS4 o posterior
Compatible with	KNX
Connection terminals	Captive Screws
Cable section (mm2)	6
Minimum Storage Temperature (ºC) (min)	-30
Maximum Storage Temperature (ºC) (max)	70
Minimum Working Temperature (ºC) (min)	-5
Maximum Working Temperature (ºC) (max)	45
Protection Degree	IP20 , UNE 20324
