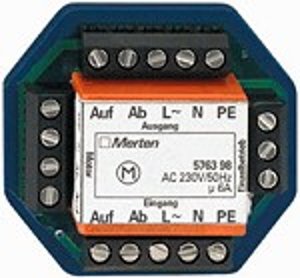

MANUFACTURER DEVICE NAME
Multiple control relay for roller shutters,flush-mounted
FUTURASMUS DEVICE NAME: KNX shutter actuator, Ref. 576398
INFORMACIÓN DEL FABRICANTE
| Marka | : Merten |
| Referans | : 576398 |
| Aile | : actuator |
| Renk | : |
| Garanti | : 0 yıl |
| İade izni | : Hayır |
ÜRETİCİ HAKKINDA DAHA FAZLA BİLGİ
| Fiyat grubu | : E0 |
| EAN kodu | : 4011281893607 |
| NC/TARIC kodu | : 85364900 |
| Menşe ülke | : DE |
| Net ağırlık | : 1 g |
| Brüt ağırlık | : 1 g |
| Uzunluk | : 1 cm |
| Genişlik | : 1 cm |
| Yükseklik | : 1 cm |
ÖZELLİKLER
- ARAYÜZ
- KNX
- MONTAJ
- Dağıtım duvar kutusu / asma tavan
- AKTÜATÖR TİPİ
- İkili, röle çıkışları
- İKİLİ ÇIKIŞLARIN İŞLEVSELLİĞİ
- Panjur AC, 2 çıkış = 1 panjur
DESCRIPCIÓN
Suitable for a size 60 flush-mounted box. Flat 22 mm design. For local control using push-buttons, installation in a deep flush-mounted box. For controlling up to 2 roller shutter motors locally, in groups or centrally. With separation of load and control circuit, as well as forced locking in both directions of movement. Motors are controlled individually using a roller shutter rocker switch and centrally using the blind time switches or blind push-buttons of the Merten blind control system. Mains voltage: AC 230 V/50 Hz ±10% Control voltage: AC 230 V, ±10% Power consumption: 10 mA in relay mode Switching voltage: max. AC 250 V Switching capacity: max. 6 A Temperature range: 0-60 °C Terminals: max. 1.5 mm2 Dimensions: 22x49x52 mm (HxWxD) Installation: (Deep) flush-mounted box
